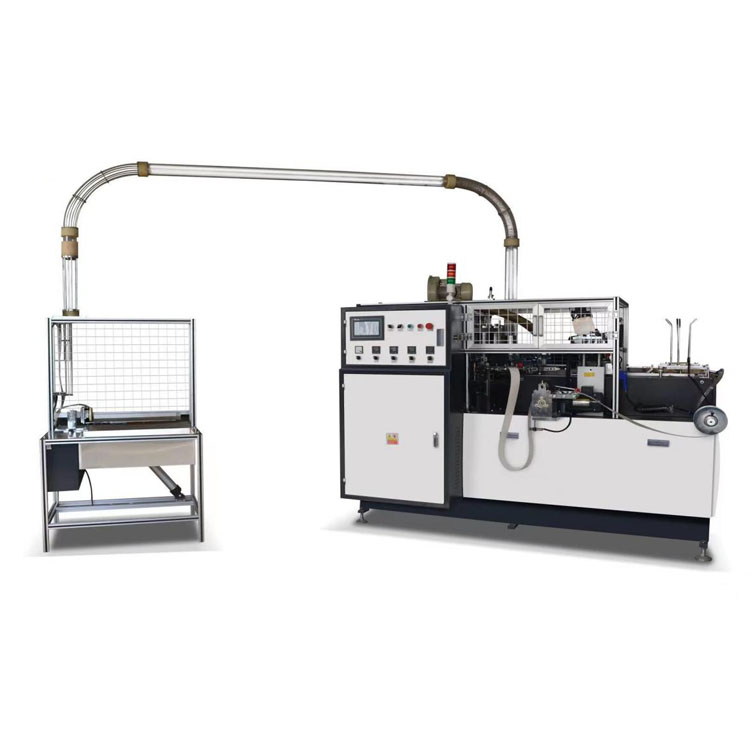

シングルプレート低速半自動紙カップ形成マシン
このシングルプレート低速半自動紙カップ形成マシンは、異常な動作を検出し、自動障害アラーム停止をトリガーし、機械部品間の衝突を防ぎ、機械の安定性と寿命を高め、使用量を単純化し、紙の廃棄物を減らすためのライトコントロール接触マルチポイントスイッチを採用します。
モデル:YB-12
お問い合わせを送信
製品説明
Single plate low speed semi-automatic paper cup forming machine YB-12 It is a multi-station automatic forming machine. It can produce beverage paper cups, tea cups and coffee cups by automatic feeding (printed fan paper), sealing (ultrasonic sealing of the cup wall), oil filling (lubrication of the winding mouth), flushing bottom (automatic cutting of the cup bottom from the web paper), heating, knurling (cup bottom sealing), rolling and unloading cup collection and other continuous processes, as well as photoelectric detection, fault alarm, counting and other functions , advertising paper cups, as well as market paper cups, ice cream cups or other disposable food paper containers ideal equipment。
YB-12 Basic information
|
Model number |
YB-12 |
brand |
YongBomachinery
|
|
speed |
65-85min/pcs |
country |
China |
|
trademark |
Customized |
After sale |
Online |
|
transport |
Wooden Case |
warranty |
1year(non-human reason) |
YB-12Machine data
|
Model number |
YB-12 |
|
Production range |
3oz-16oz (Mold replaceable) |
|
Raw material |
Single/double PE coated paper |
|
Paper weight |
140-350 g/square meter PE coated paper |
|
speed |
65-85 PCS/min |
|
voltage |
50/60HZ,380V/220V |
|
Total power |
4 kw |
|
Gross weight |
1870KG |
|
Machine size (length * width * height |
2130*1150*1900mm (machine size)
|
|
Air pressure requirement |
0.6Mpa, exhaust gas: 0.6m3 /minute |
|
|
|
YB-12Flat display
 |
 |
|
Multiple feed |
Automatic refueling system |
 |
 |
|
Punch the backing paper |
PLC control system |
Production display
